Ht Washer Equipment Focus on washing machine equipment solutions.

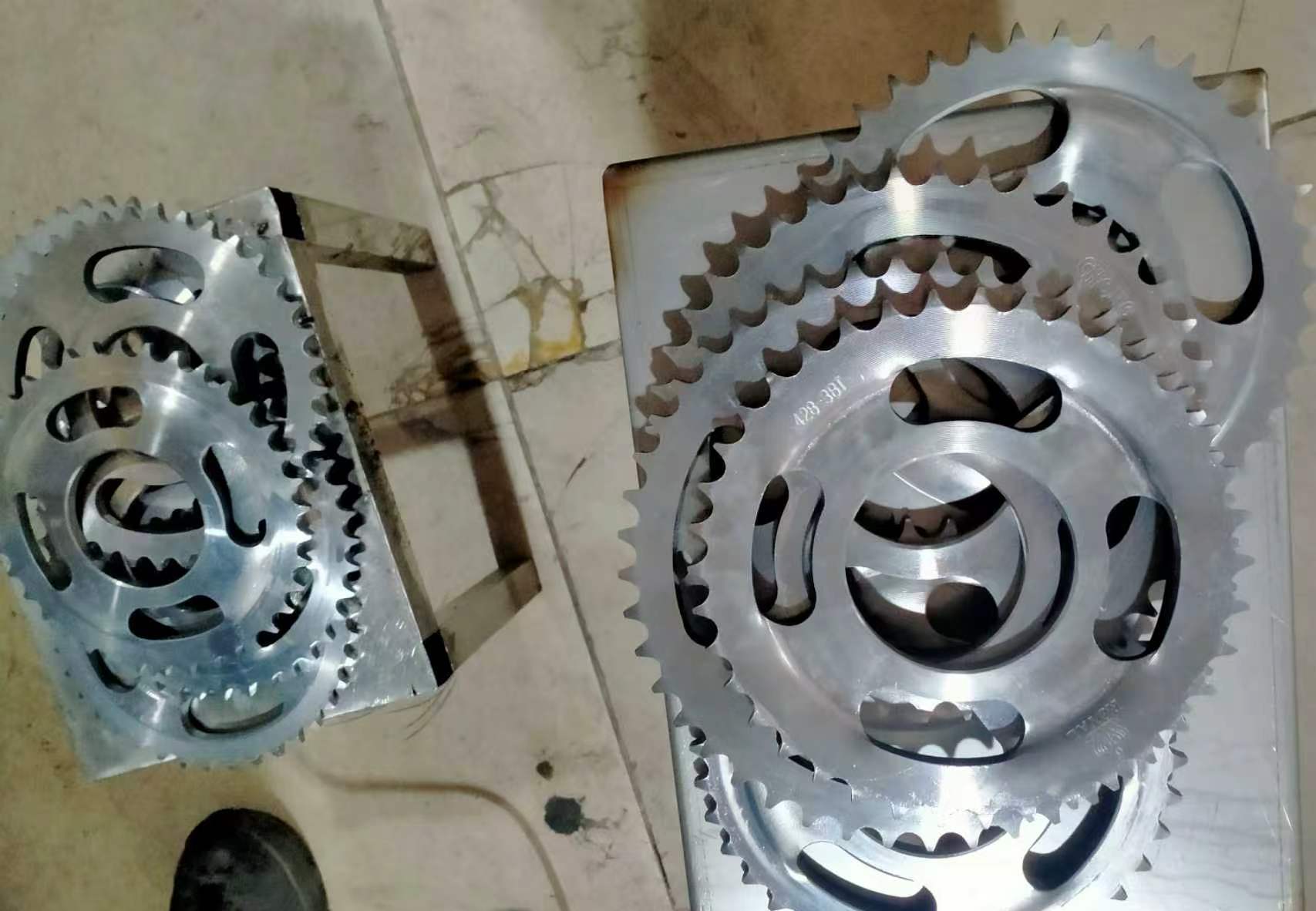

Applicable Workpieces: Motorcycle sprockets, automotive gears, precision mechanical gears and other metal parts
Core Functions: Integrated oil removal, chip removal, rinsing, air blowing and drying to realize batch automated cleaning
Typical Model: HTA series (e.g., HTA-7000FS), with customizable mesh belt width and cleaning stations according to workpiece dimensions

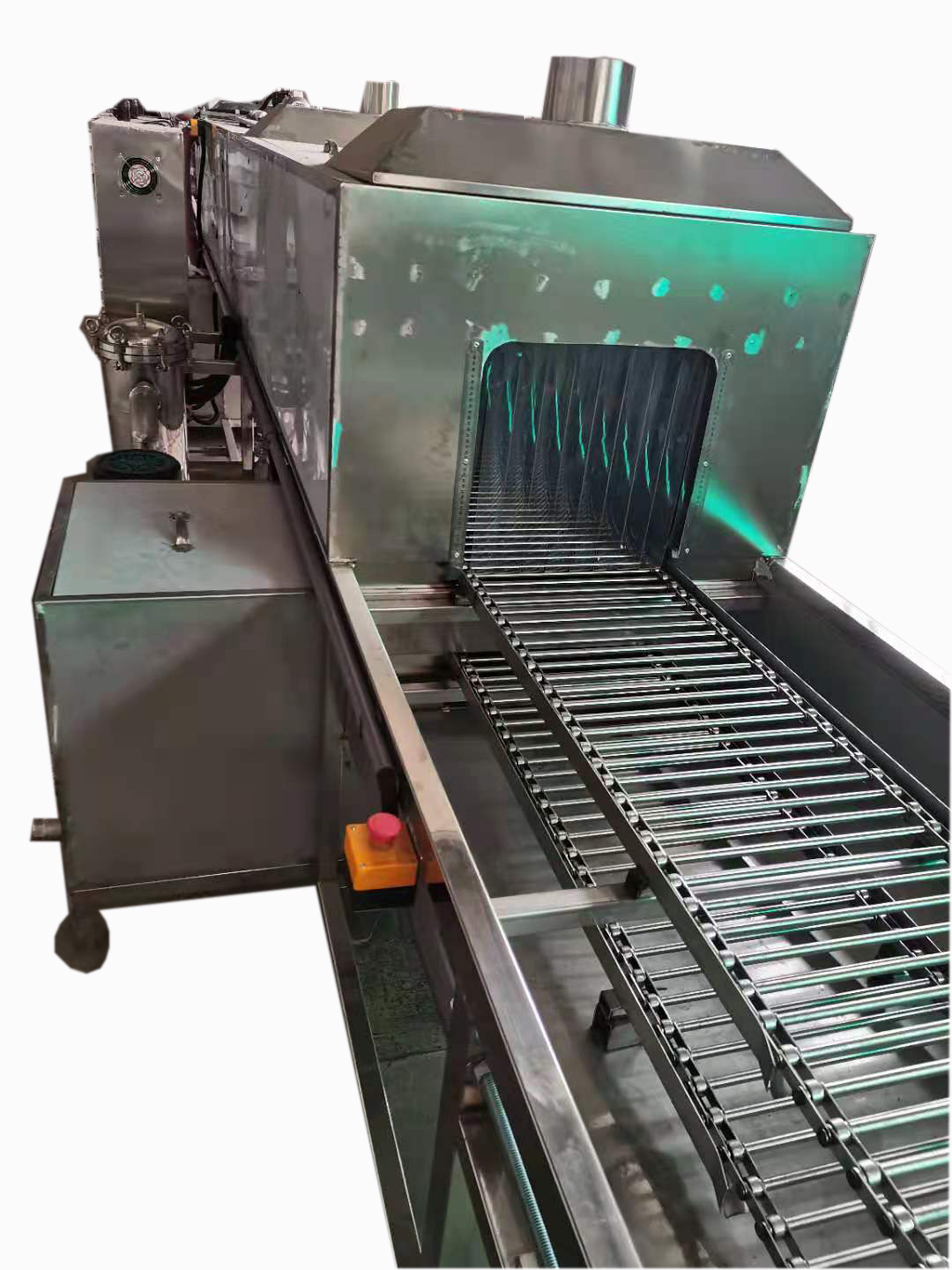

Conveying System: Adopts stainless steel mesh belt/chain drive, with adjustable conveying speed of 0.18~1.8m/min, suitable for gears/sprockets of different sizes
Cleaning Process:
Pre-washing section: High-pressure spray to remove large oil stains and iron chips
Main washing section: Alkali solution + high-temperature (40~60℃) high-pressure spray (0.35~0.5MPa) to deeply decompose cutting oil and anti-rust oil
Rinsing section: Circulating clean water spray to wash away residual chemicals
Air blowing section: High-pressure air knives to remove surface moisture
Drying section: Hot air circulation drying (60~120℃), ready for the next process directly
Material and Durability: The whole machine is made of SUS304 stainless steel, which is corrosion-resistant and easy to clean, adapting to industrial production environments
Filtration System: Multi-stage precision filtration to prevent nozzle clogging and extend the service life of cleaning fluid
Dead-angle-free Cleaning: Multi-directional nozzles arranged at the top, bottom, left and right, 360° scouring complex structures such as gear tooth grooves and sprocket holes
Efficient Decontamination: Synergy of high-pressure water flow and chemical agents, with a one-time cleaning pass rate of over 98%, thoroughly removing oil stains and metal debris
Mass Production: Continuous conveying design, capable of handling hundreds to thousands of gears per hour, greatly improving productivity
Environmental Protection and Energy Saving: Circulating use of cleaning fluid with low water consumption, meeting industrial environmental protection requirements
| Parameter Item | Typical Value |
| Power Supply | Three-phase 380V, 50Hz |
| Spray Pressure | 0.35~0.5MPa |
| 0.35~0.5MPa | 40~60℃ |
| Drying Temperature | 60~120℃ |
| Conveying Speed | Conveying Speed |
| Machine Material | Machine Material |
Production enterprises of motorcycle/electric vehicle sprockets and gears
Cleaning of automotive transmission gears and differential gears
Oil removal and drying of general mechanical gears and hardware transmission parts
If your sprockets/gears are large in size or heavily contaminated with oil, you can choose an enhanced version of high-pressure spray + ultrasonic composite cleaning machine to further improve cleaning precision; if pursuing extreme productivity, you can connect with Hengtai to customize a full-line automated cleaning solution.
