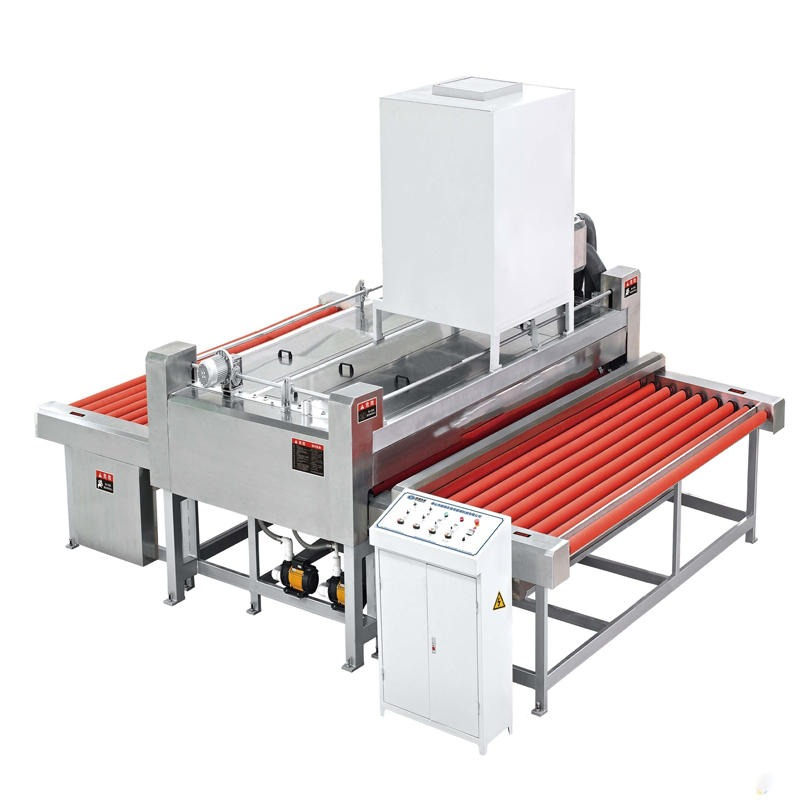

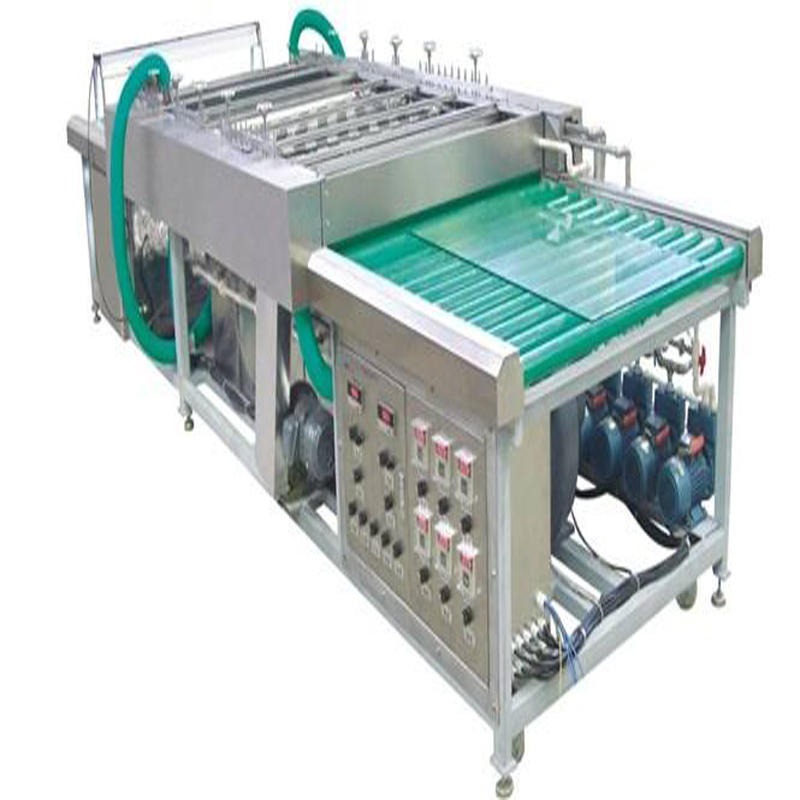

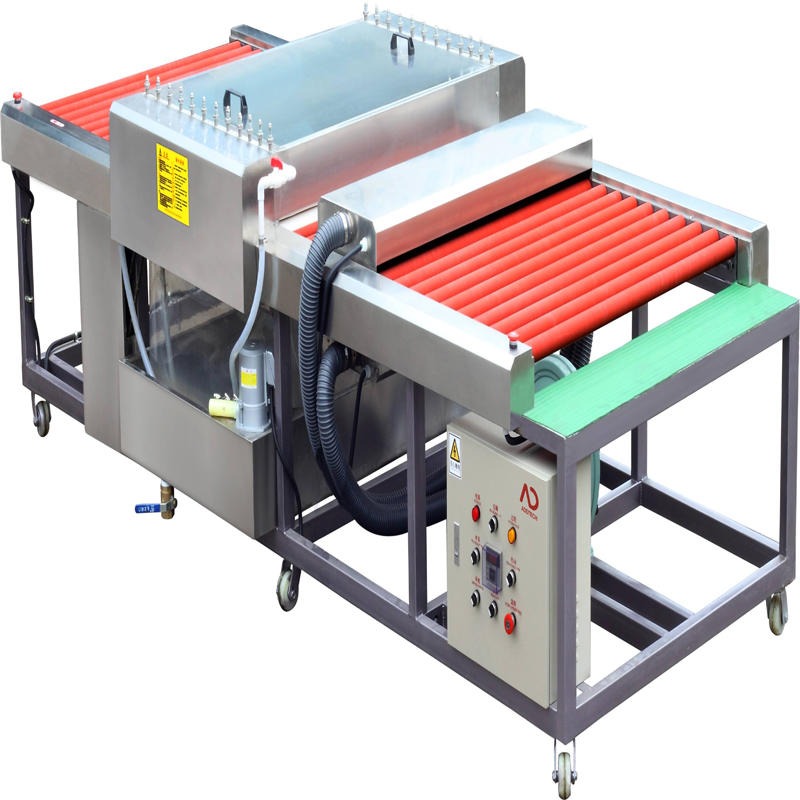

Surface Cleaning And Drying Equipment for Industrial Sheet Material

Share to:

This machine guarantees high-quality sheet materials. It first uses a surface cleaning machine to conduct thorough surface cleaning, removing dust and stains efficiently. The integrated cleaning and drying for sheet material function then follows with drying, boosting workflow speed for batch production.

Availability:

Quantity:



Inquire Add to Basket

Model:
HTA-600FS
Brand:
HT

cleaning and drying for sheet material surface cleaning surface cleaning machine surface cleaning equipment Parts Washer Surface Cleaner Flat glass cleaning machine Surface Cleaning And Drying Equipment Blade cleaning machine machine surface finish

Product Description

1. Product Basic Information

A professional integrated cleaning and drying device for industrial sheets, combining brush spray cleaning, multi-stage cleaning, water absorption and air drying. It removes oil, dust and impurities from sheet surfaces, adopts horizontal conveyor belt for one-stop automatic continuous operation, with environmental protection wastewater treatment, suitable for sheet processing, hardware and building materials industries.

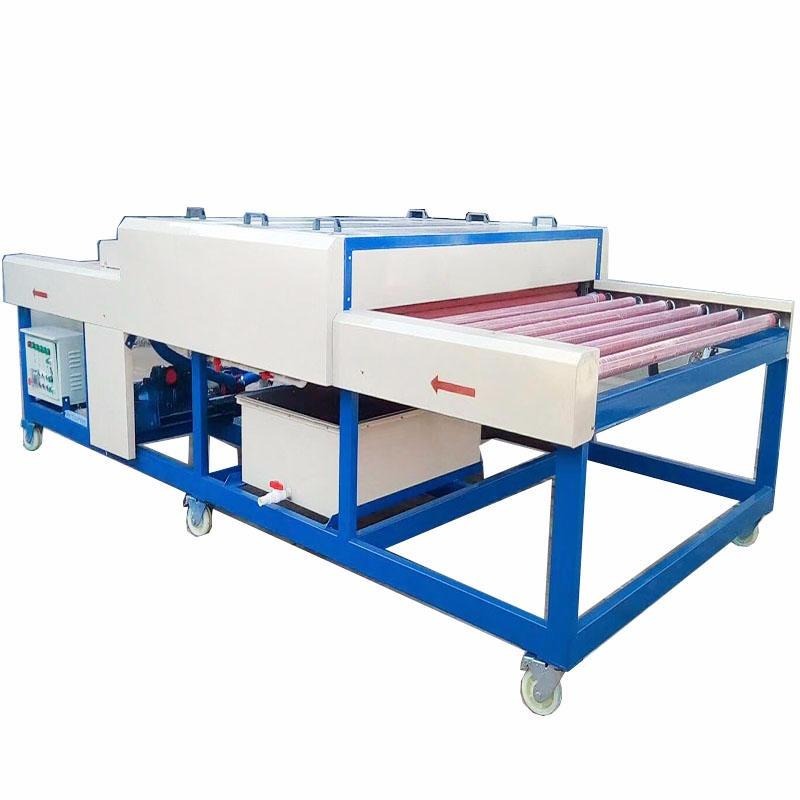

Board Drying Machine

2. Customization Instructions

Provide personalized customization based on production scale, sheet type and processing needs, with professional technical guidance.

Customization Items	Optional Range
Sheet Thickness	0.1-6mm (default), customizable to 0.05-10mm
Cleaning Components	Brushes (6-12 sets), sponge rollers, glue sticks, water tanks (2-4 sets)
Conveyor & Speed	Customizable belt width, frequency conversion speed regulation
Others	Drying system, wastewater treatment, control system (PLC optional)

A detailed customization plan and quotation will be provided within 2 working days after confirmation.

3. Product Specifications

Parameter	Details
Cleaning Method	Brush spray + cleaning agent, double-sided rolling
Standard Components	9 brushes, 4 sponge rollers, 10 glue sticks, 3 water tanks
Applicable Thickness	0.1-6mm (customizable), flat metal sheets
Conveying & Drying	Horizontal conveyor, chain drive; hot air drying (adjustable temperature)
Control & Wastewater	Button control (PLC optional); environmental protection, water recycling

4. Product Advantages and Value

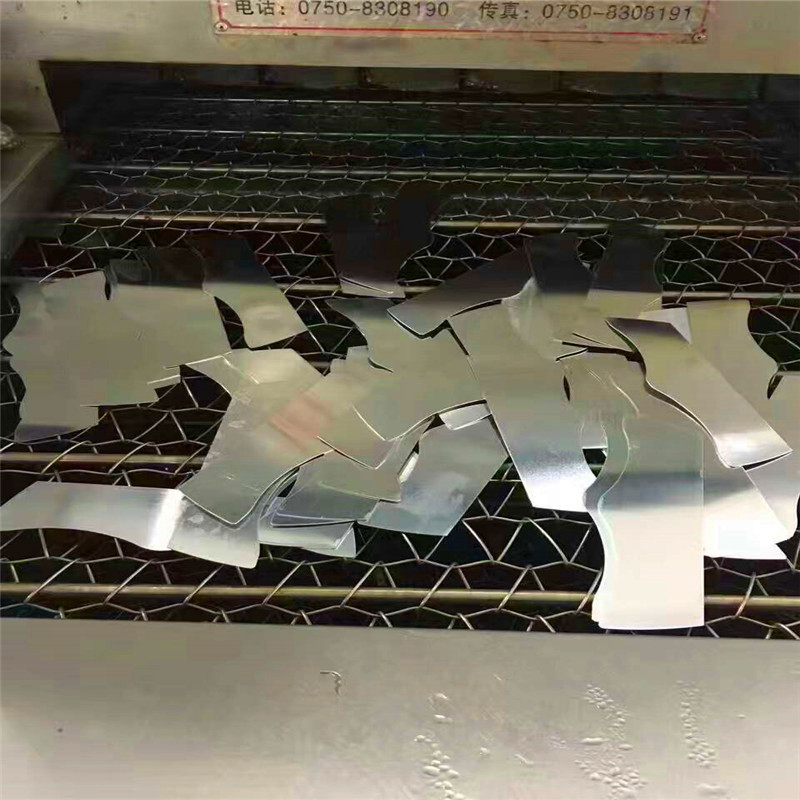

Efficient Cleaning Performance
Adopting three-stage circulating brushing and spray cleaning design, the equipment realizes all-round dead-corner-free cleaning on both sides of the sheet surface. With professional cleaning agent matching, the cleaning efficiency reaches over 98%, thoroughly removing oil stains, dust, oxide layers and tiny impurities. It ensures high surface cleanliness and provides qualified surface conditions for subsequent coating, spraying and deep processing.
Highly Automatic & Time-saving
It integrates feeding, conveying, multi-stage cleaning, water absorption, air drying and discharging into one fully automatic process. Unmanned continuous operation is realized to greatly save labor cost. The equipment supports 24-hour non-stop stable production, effectively improving overall production efficiency and shortening the production cycle of sheet processing.
Wide Adaptability & Customizable
It is perfectly suitable for various industrial sheets such as aluminum plates, steel plates, blade plates, hollow panels and MDF panels. The standard applicable thickness is 0.1–6mm, and personalized customization is available for ultra-thin or extra-thin plates. It can flexibly match different production lines and workpiece specifications with strong universality.
Energy-saving & Cost-effective
Built with high-quality structural parts and driving components, the machine runs steadily with low failure rate and long service life. Equipped with an environmental wastewater recycling system, it saves water resources effectively. Frequency conversion speed regulation and optimized hot air drying design reduce power consumption significantly, helping enterprises lower long-term operation and maintenance costs.
Enterprise Core Value
High-standard cleaning effectively improves finished product quality, greatly reduces defective and rejection rate. Automatic and efficient production upgrades overall workshop capacity, while energy-saving and environmentally friendly design meets industrial emission standards. It helps enterprises optimize production processes, control comprehensive costs and enhance market core competitiveness.
